SS304 Gold Mirror Pvd Color stainless steel Sheet Decoration Plate
| Lugar de origem | China |
|---|---|
| Marca | MBT |
| Certificação | ISO, AISI, ASTM, GB, EN, DIN, JIS |
| Número do modelo | 304 |
| Quantidade de ordem mínima | 1 unidade |
| Preço | 30-40 USD |
| Detalhes da embalagem | Caixa de Madeira |
| Tempo de entrega | 7-15 dias úteis |
| Termos de pagamento | L/C, D/A, D/P, T/T |
| Habilidade da fonte | 7000-8000 toneladas/mês |
Contacte-me para amostras grátis e vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Tipo | Chapa de aço inoxidável gravada | Padrão | As especificações do presente regulamento são aplicáveis a todos os veículos da categoria A. |
|---|---|---|---|
| Forma | Placa do、 da folha | Tratamento de superfície | Espelho/Gravado |
| Película de PVC | FILME PVC 7C Normal | Espessura | 1.0 mm |
| Tamanho | 1219x2438mm | Grau | 304 aço inoxidável |
Descrição de produto

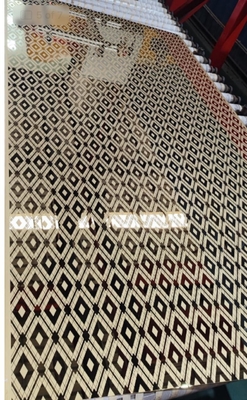

SS304 Gold Mirror Pvd Color Stainless Steel Sheet Decoration Plate
| Grade: | 300 Series | Standard size: | 1219*2438MM |
| Length: | Customized | Thickness: | 0.3-3.0MM |
| Width: | 1000mm 1219mm 1500mm | Type: | Sheet/plate |
| Application: | Industry,Architecture, Decorate | Tolerance: | ±3%/±5% |
| Processing Service: | Bending, Welding, Decoiling, Punching, Cutting | Steel Grade: | 201 304 316L |
| Surface Finish: | Mirror+Etched+Pvd Coating | Delivery Time: | 7-15 working Days, 35 days |
| Product Name: | Etched/Elevatot Stainless Steel Sheet | Technique: | Cold Rolled Surface |
| Material: | Steinless Steel | Packing: | Standard wooden pallet |
| Edge: | Mill Edge Slit Edge | Sample: | Provided fee |
| Item: | ASTM Standard | Price Terms: | EXW FOB CIF |
| Payment: | 30%TT+70%TT | Pattern: | Customized |
| High Light: | Etching 316l Stainless Steel Plate/1mm 316l Stainless Steel Plate/316l Stainless Steel Mirror Shee | ||
| Grade | STS 304 | STS 316 | STS 430 | STS 201 |
| Elong(10%) | Above 40 | 30MIN | Above 22 | 50-60 |
| Hardness | ≤200HV | ≤200HV | Below 200 | HRB100,HV230 |
| Cr(%) | 18-20 | 16-18 | 16-18 | 16-18 |
| Ni(%) | 8-10 | 10-14 | ≤0.60% | 0.5-1.5 |
| C(%) | ≤0.08 | ≤0.07 | ≤0.12% | ≤0.15 |
Product Information
Surface:Mirror etched
grade:201 304 316L 430 etc.
materials:Stainless steel sheet/plate
Thickness: 0.3-3.0 mm
Standard size:4*8FT
Width:1000/1219mm/1500mm & customized
Length:Max 4000mm & customized
Remarks:
1,Feel free to contact us for more designs.
2,Your own door panel design is welcomed.
3,Special dimensions are accepted on request.
4,Customized specific cut-to-length, laser-cut, bending are acceptable.
Stainless steel etching or corrosion principle:
the use of ferric chloride strong oxidation, stainless steel surface corrosion, trivalent iron into a more stable bivalent iron elements; Specific production process is: first on the stainless steel surface coated with anti-corrosion layer, will need to protect the part of the protection, put it into the spraying iron trichloride assembly line, corrosion will be finished on the anti-corrosion layer washed off, the formation of patterns;
Product Packing Ways
Protective Film
1. Double layer or single layer.
2.Nromal 7C PVC film,Laser film.
Packing Details
1. Wrap with waterproof paper.
2. Fasten the straps aligned with edge protection.
3.Attach a goods information label to the wooden packing to facilitate easy identification.
Packing Case
Strong wooden case, metal pallet and customized pallet are acceptable.
FAQ
1. HOW MANY COUNTRIES DID YOU EXPORT?
We exported to more than 20 countries from 5 continents, like America, Russia, Kuwait, Egypt, Korea,etc.
2. WHAT COLORS CAN BE DONE FOR PVD PLATING AND WATER PLATING?
PVD plating: gold, coffee gold, champagne gold, rose gold, rose red, bronze, sapphire blue, violet, black titanium, jade green, grass green, etc.
3. HOW TO GET THE SAMPLE?
Free samples can be provided. We have many samples in various patterns in stock, and customized samples will take about 5-7days to produce. Just contact us for the FREE SAMPLES now !
4. HOW CAN YOU GUARANTEE THE PRODUCT QUALITY?
We purchase the products material from JISCO, TISCO, BAOSTEEL, ZPSS and other steel factory that famous in the world.
